PROMO
510X

COLOR

  • Green
  • Yellow

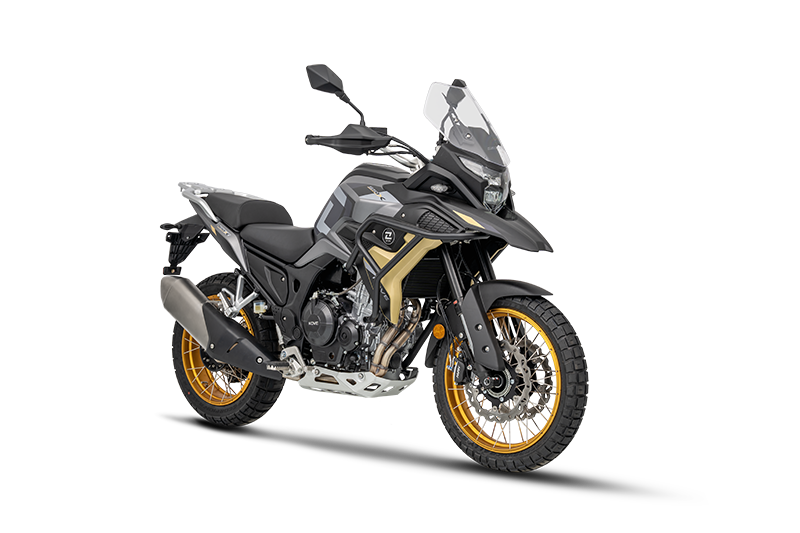

  • 510X Yellow

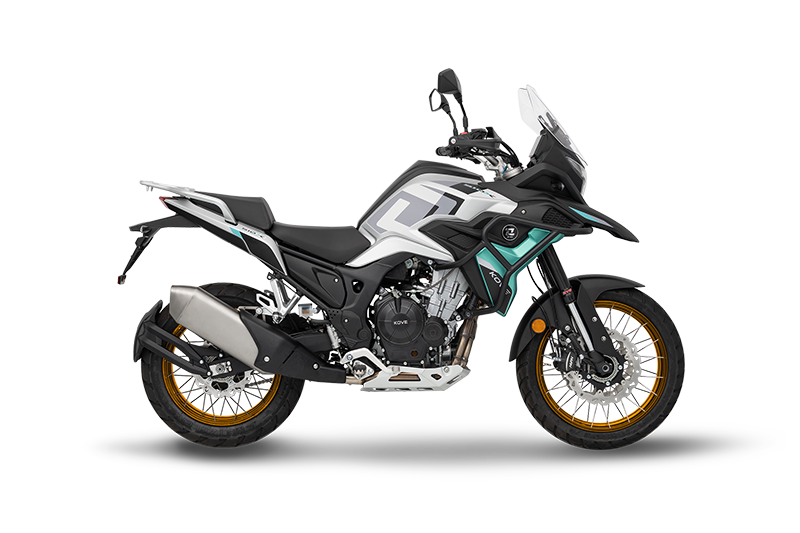

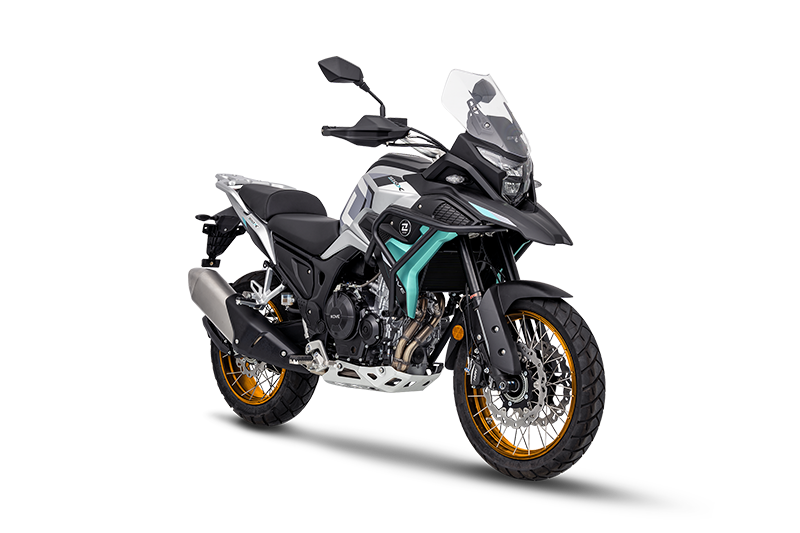

  • 510X Green

An accessible all-in allroad that combines adventure equipment, comfort, and A2-friendliness without the premium price tag

€5.699

ROAD
OFFROAD
  • A2
  • KYB Suspension
  • 20L Tank + 3 Cases
  • Low Seat
TECHNICAL DETAILS
Download Manual
  • Dimension
  • Engine
  • Chassis
  • Length X Width X Height2200×935×1400mm
  • Wheelbase1479mm
  • Seat height820mm
  • Tank capacity20L
  • Curb weight206kg
  • Ground clearance210mm
  • Steering angle35°
  • Rake angle26.5°
  • Engine typeDual cylinders, vertical
  • Displacement498cc
  • Bore x stroke72×61.2mm
  • Compression ratio10.6
  • Cooling typeLiquid cooled
  • Fuel supplyBOSCH EFI
  • Max. power35kW/8500rpm
  • Max. torque45Nm/7000rpm
  • Max. speed150 km/h
  • Throttle styleMechanical throttle
  • Frame typeDiamond shape, dual-wing beam
  • Front suspensionPreload damping adjustable, KYB
  • Rear suspensionPreload damping adjustable, KYB
  • Front suspension stroke195mm
  • Rear suspension stroke85mm
  • Front brakeDual floating disc, 2-piston calliper
  • Rear brakeSingle disc, 1-piston calliper
  • ABSDual ABS
  • Front tire110/80 R19
  • Rear tire150/70 R17
  • WheelAluminum alloy
  • DashboardTFT
510X Green 45
